3 Channels Rubber Cable Ramp
Call +86 13642360473 For A Free Quote
Mail: st@chinaflightcases.com

Home > Products > Others > Truss System > Cable Ramp >

3 Channels Rubber Cable Ramp

3 Channels Rubber Cable Ramp 3 Channels Rubber Cable Ramp 3 Channels Rubber Cable Ramp 3 Channels Rubber Cable Ramp 3 Channels Rubber Cable Ramp 3 Channels Rubber Cable Ramp 3 Channels Rubber Cable Ramp 3 Channels Rubber Cable Ramp

3 Channels Rubber Cable Ramp

Click to see larger image

Click left or right to switch pictures

Standard Models (Standard Sizes )

1. 2-channel cable ramp
---RKCRN2C
---Outside sizes: 1000 x 250 x 50 mm
---Channel size: 30 x 30 mm
---Weight: 9.2kg
---Loading capacity: 15- 20 ton/sq.m

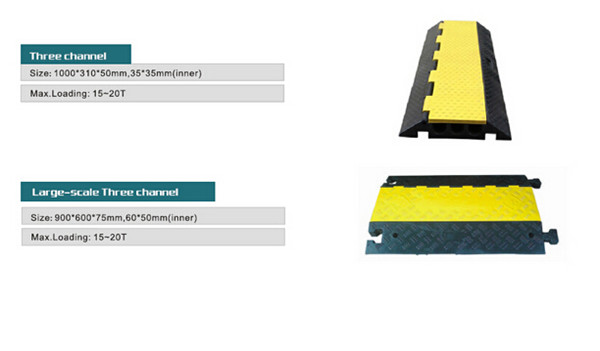

2. 3-channel cable ramp
---RKCRN3C
---Outside sizes: 1000 x 310 x 55 mm
---Channel size: 35 x 35 mm
---Weight: 14.5kg
---Loading capacity: 15-20 ton /sq.m

3. 5-channel cable ramp
---RKCRN5C
---Outside sizes: 770 x 485 x 65 mm
---Channel size:  4 channels--40 x 40 mm, 1 channel---42 x 18 mm
---Weight: 20kg
---Loading capacity: 15-20 ton/sq.m


Large Size Models also available;
Please feel free to contact us for further information.
Features

* For stage applications and outdoor cable installation
* Robust hard rubber version
* 3 compartments for cables up to Ø 60mm

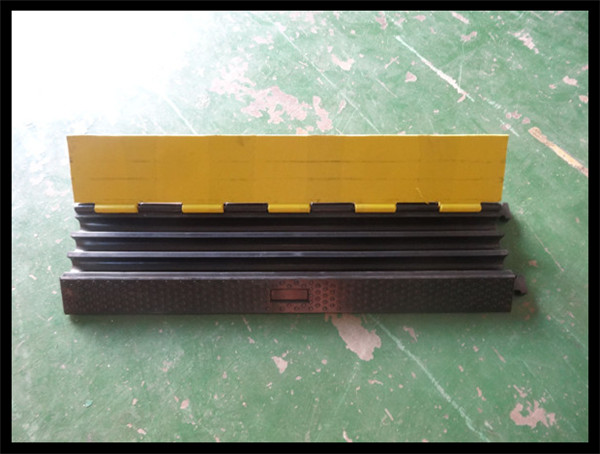

* Striking yellow cover, can be opened
* Can be extended as desired due to connector system
* Load: 15-20t
* Admissible ambient temperature: -35 °C to +65 °C
* Dimensions: 1000 * 310 * 55mm (Standard size) / 900 * 600 * 75(Large size)
